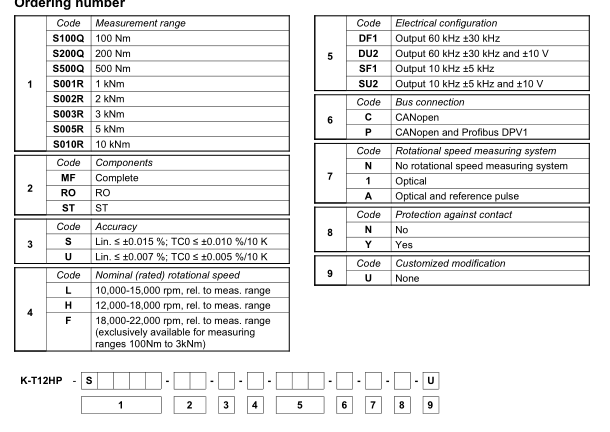

Ordering number

1

Code Measurement range

S100Q 100 Nm

S200Q 200 Nm

S500Q 500 Nm

S001R 1 kNm

S002R 2 kNm

S003R 3 kNm

S005R 5 kNm

S010R 10 kNm

2

Code Components

MF Complete

RO RO

ST ST

3

Code Accuracy

S Lin. ≤ ±0.015 %; TC0 ≤ ±0.010 %/10 K

U Lin. ≤ ±0.007 %; TC0 ≤ ±0.005 %/10 K

4

Code Nominal (rated) rotational speed

L 10,000-15,000 rpm, rel. to meas. range

H 12,000-18,000 rpm, rel. to meas. range

F 18,000-22,000 rpm, rel. to meas. range

(exclusively available for measuring

ranges 100Nm to 3kNm)

5

Code Electrical configuration

DF1 Output 60 kHz ±30 kHz

DU2 Output 60 kHz ±30 kHz and ±10 V

SF1 Output 10 kHz ±5 kHz

SU2 Output 10 kHz ±5 kHz and ±10 V

6

Code Bus connection

C CANopen

P CANopen and Profibus DPV1

7

Code Rotational speed measuring system

N No rotational speed measuring system

1 Optical

A Optical and reference pulse

8

Code Protection against contact

N No

Y Yes

9

Code Customized modification

U None

K-T12HP - S - - - - - - - - U

1 2 3 4 5 6 7 8 9

B04582_02_E00_00 HBM: public HBM 16

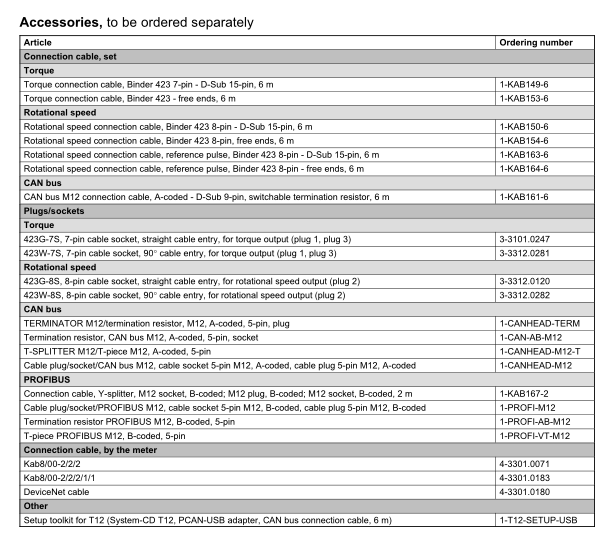

Accessories, to be ordered separately

Article Ordering number

Connection cable, set

Torque

Torque connection cable, Binder 423 7-pin - D-Sub 15-pin, 6 m 1-KAB149-6

Torque connection cable, Binder 423 - free ends, 6 m 1-KAB153-6

Rotational speed

Rotational speed connection cable, Binder 423 8-pin - D-Sub 15-pin, 6 m 1-KAB150-6

Rotational speed connection cable, Binder 423 8-pin, free ends, 6 m 1-KAB154-6

Rotational speed connection cable, reference pulse, Binder 423 8-pin - D-Sub 15-pin, 6 m 1-KAB163-6

Rotational speed connection cable, reference pulse, Binder 423 8-pin - free ends, 6 m 1-KAB164-6

CAN bus

CAN bus M12 connection cable, A‐coded - D‐Sub 9‐pin, switchable termination resistor, 6 m 1-KAB161-6

Plugs/sockets

Torque

423G-7S, 7-pin cable socket, straight cable entry, for torque output (plug 1, plug 3) 3-3101.0247

423W-7S, 7-pin cable socket, 90° cable entry, for torque output (plug 1, plug 3) 3-3312.0281

Rotational speed

423G-8S, 8-pin cable socket, straight cable entry, for rotational speed output (plug 2) 3-3312.0120

423W-8S, 8-pin cable socket, 90° cable entry, for rotational speed output (plug 2) 3-3312.0282

CAN bus

TERMINATOR M12/termination resistor, M12, A-coded, 5‐pin, plug 1-CANHEAD-TERM

Termination resistor, CAN bus M12, A-coded, 5‐pin, socket 1-CAN-AB-M12

T-SPLITTER M12/T-piece M12, A-coded, 5‐pin 1-CANHEAD-M12-T

Cable plug/socket/CAN bus M12, cable socket 5‐pin M12, A-coded, cable plug 5‐pin M12, A-coded 1-CANHEAD-M12

PROFIBUS

Connection cable, Y‐splitter, M12 socket, B‐coded; M12 plug, B‐coded; M12 socket, B‐coded, 2 m 1-KAB167‐2

Cable plug/socket/PROFIBUS M12, cable socket 5‐pin M12, B-coded, cable plug 5‐pin M12, B-coded 1-PROFI-M12

Termination resistor PROFIBUS M12, B-coded, 5‐pin 1-PROFI-AB-M12

T-piece PROFIBUS M12, B-coded, 5‐pin 1-PROFI-VT-M12

Connection cable, by the meter

Kab8/00-2/2/2 4-3301.0071

Kab8/00-2/2/2/1/1 4-3301.0183

DeviceNet cable 4-3301.0180

Other

Setup toolkit for T12 (System‐CD T12, PCAN‐USB adapter, CAN bus connection cable, 6 m) 1-T12-SETUP-USB

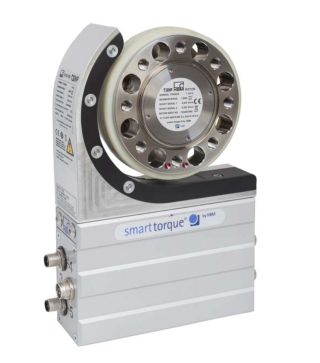

高精度

極小的線性誤差，包括滯后0.007％

優異的溫度穩定性，TC0為 0.005%/10K

FlexRange? 技術 – 無需進行量程切換

卓越的基本精度，采用 FlexRange? 技術，可以在完整測量范圍內確保精確的測量值。

安全

高帶寬

機械極限值監控

測量過程診斷

內置溫度測量

減少宕機時間，有效節省成本

靈活

支持 CAN, PROFIBUS, EtherCAT 和 PROFINET 協議，可輕松集成不同的測試臺

測量范圍從 100 Nm 到 10 kNm

極高分辨率，高質量，可靠的測量結果
